UL Dlc 8FT LED Tri Proof Vapor Light, 150 Lm/W Adjustable Watt Tunable 60W/70W/80W /90W/100W CCT Tunable 3000K/3500K/4000K/5000K/6500K
Product Description
Basic Specifications
Product Name
LED Vapor Tight Light
Light Body Material
Aluminum Alloy
LED Chip
SMD2835
Shape
Rectangle
PF
>0.95
IP Grade
IP66
Specification
4ft / 8ft
HS Code
9405409000
Production Capacity
50,000 Pieces / Month
UL DLC 8FT LED Tri Proof Vapor Light
150 lm/W Adjustable Watt Tunable (60W/70W/80W/90W/100W) & CCT Tunable (3000K/3500K/4000K/5000K/6500K). A versatile fixture family designed to cover multiple applications in even the most difficult environments.
Product Features
- IP66 water-proof, dust-proof, IK10 pressure-proof
- Special design for multiple link capability
- UL DLC Listed for high quality and safety
- Cooler-proof with special materials for cover
- Easy replacement and installation with brackets
Technical Specifications
| Parameter | Details |
|---|---|
| Power Options | 4ft: 20W/40W/50W/60W/70W | 8ft: 60W/70W/80W/90W/100W |
| Input Voltage | AC100-277V 50/60Hz |
| System Efficacy | 150 LM/W (CCT=5000K) |
| CCT | 3000K / 3500K / 4000K / 5000K / 6500K Tunable |
| CRI / Ra | >80Ra |
| Beam Angle | 120° |
| Operating Temp | -30°C to +55°C |
| IP Rating | IP66 |
| Life Span | >50,000 Hours (L70) |
| Certificates | UL, DLC, TUV-GS, CB, SAA, RCM, FCC, CE, RoHS |
| Warranty | 5 Years |

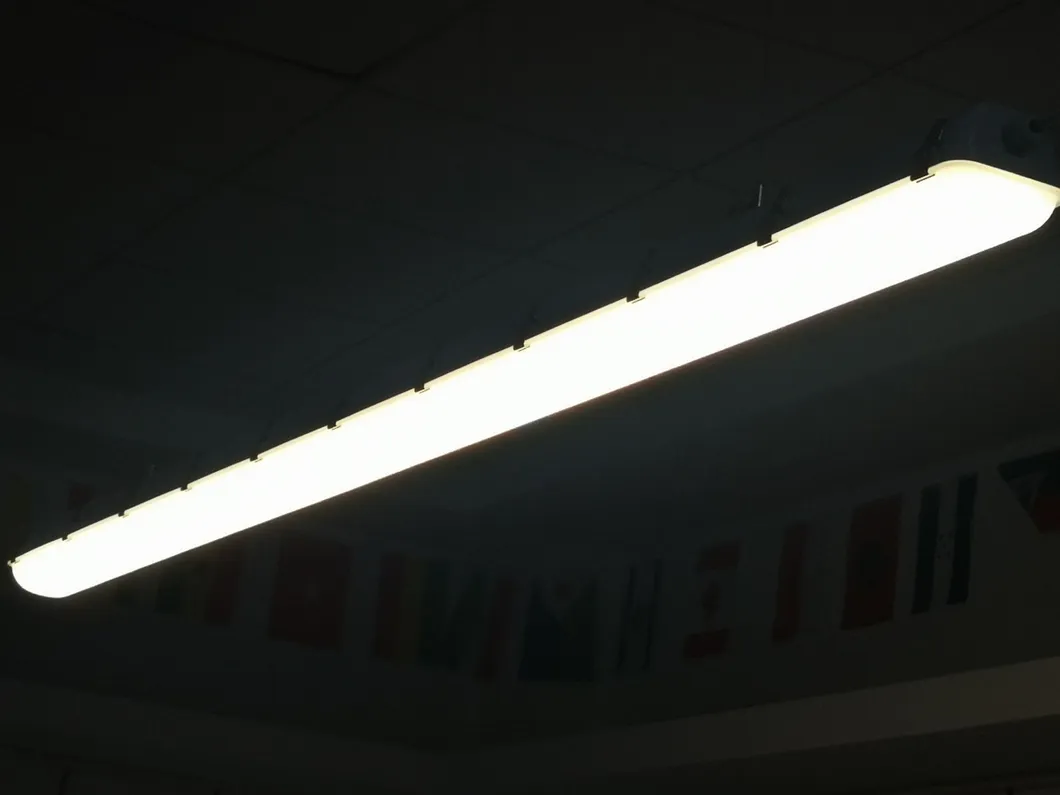

Applications
Suitable for Airport, Train station, Subway, Parking lot, Factory, Workshops, Production line, Warehouse, Tunnel, Basement, Storage, Roads, Supermarket, and wet location lighting applications.
Installation Guide
Hook Installation:
- Cut off power before operation.
- Choose suitable hook based on luminaire diameter.
- Fix hook (must bear 3x lamp weight).
- Connect lamp safely to hook.
- Wiring: Brown (L), Blue (N), Lime-green (Earth).
- Light up the luminaires!
Bracket Installation:
- Cut off power before installation.
- Measure hole size and choose suitable screws.
- Fix screws at installation point (must bear 3x lamp weight).
- Tighten screws on both sides of the holder.
- Connect power wires (L, N, Earth).
- Light up the luminaires!
Frequently Asked Questions
What does "Tri-Proof" mean for this LED light?
Tri-proof refers to the fixture being water-proof (IP66), dust-proof, and pressure-proof (IK10), making it ideal for harsh industrial environments.
Can I adjust the brightness and color temperature?
Yes, this model features Watt Tunable (e.g., 60W to 100W) and CCT Tunable (3000K to 6500K) settings, allowing you to customize the lighting on-site.
Is this light suitable for outdoor use?
Absolutely. With an IP66 rating, it is designed to function perfectly in outdoor and wet locations.
What are the available installation methods?
The fixture supports multiple methods including Surface Mounted, Suspending Ring, Suspending Chain, Supporting Rod, and Bracket Mounting.
Does the product come with a warranty?
Yes, we provide a 5-year quality warranty for this LED Vapor Tight Light.
Can it be equipped with motion sensors?
Yes, it can be configured with microwave sensors (turn on/off or dimming) and emergency kits if required.
