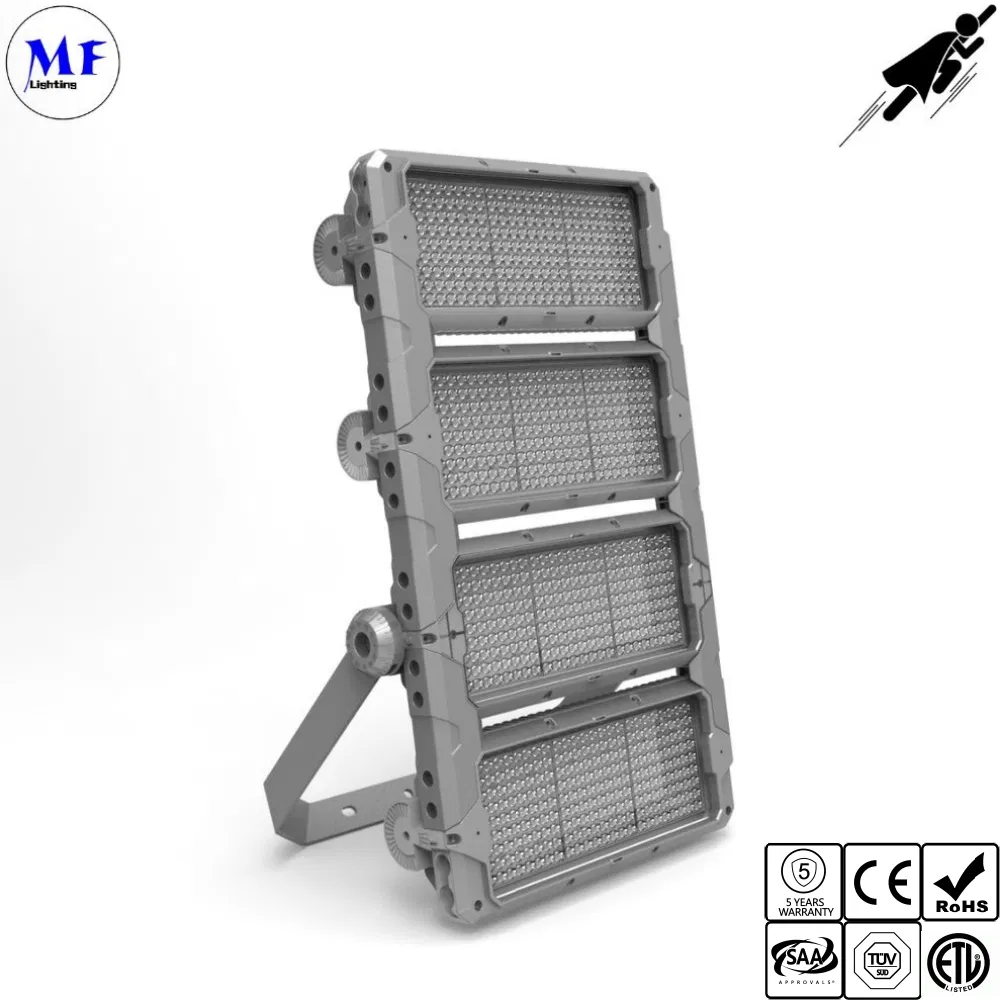

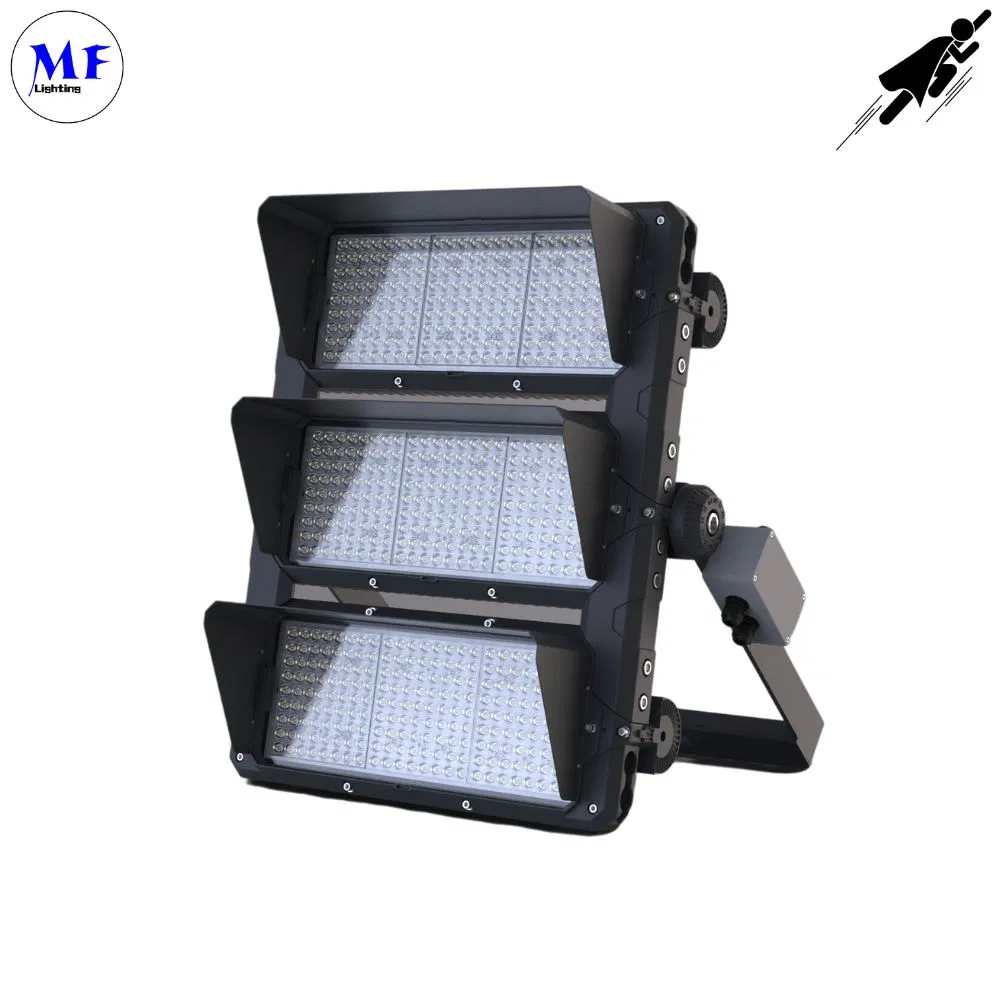

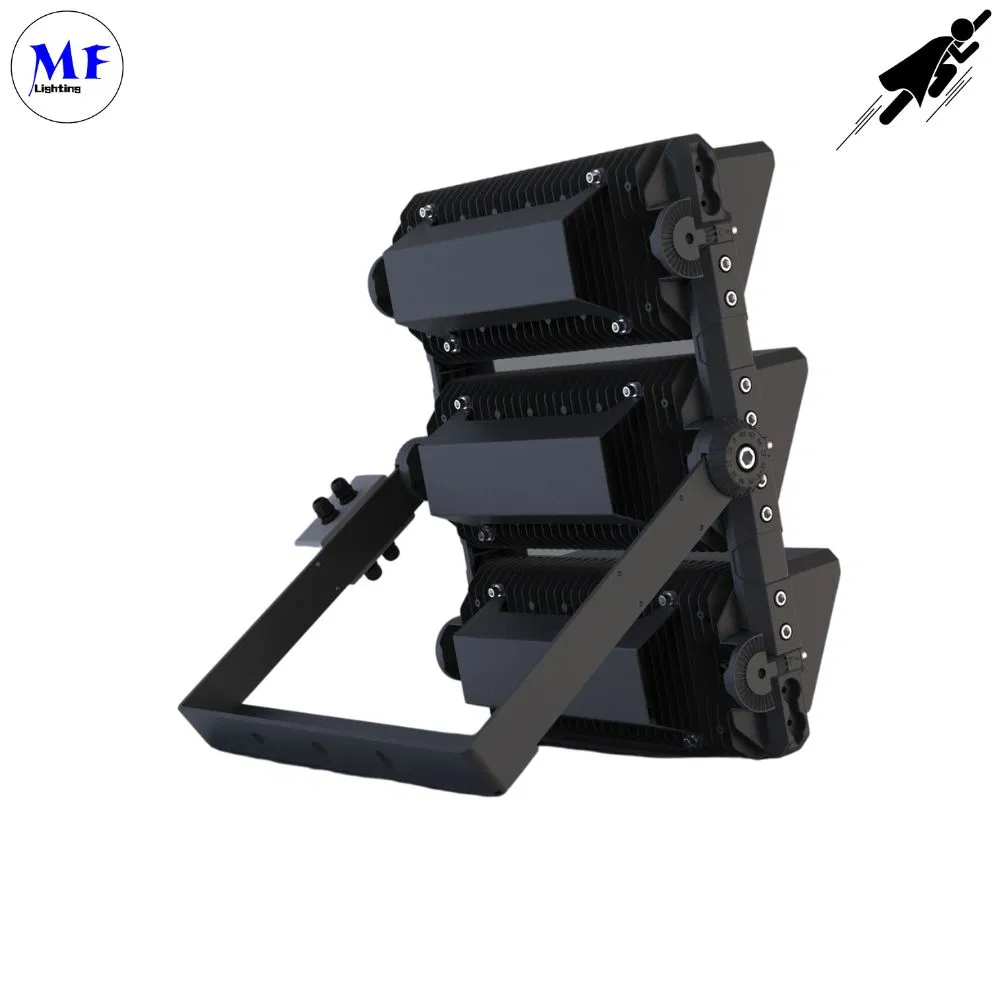

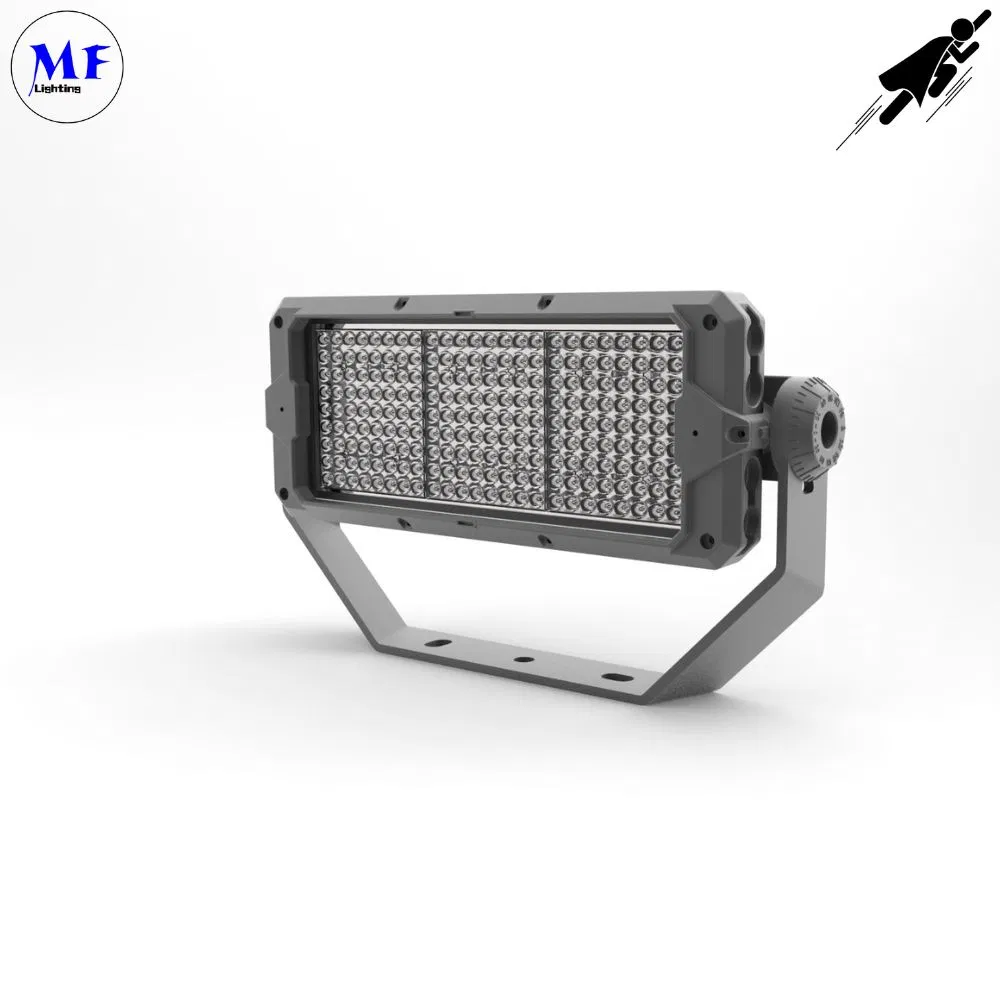

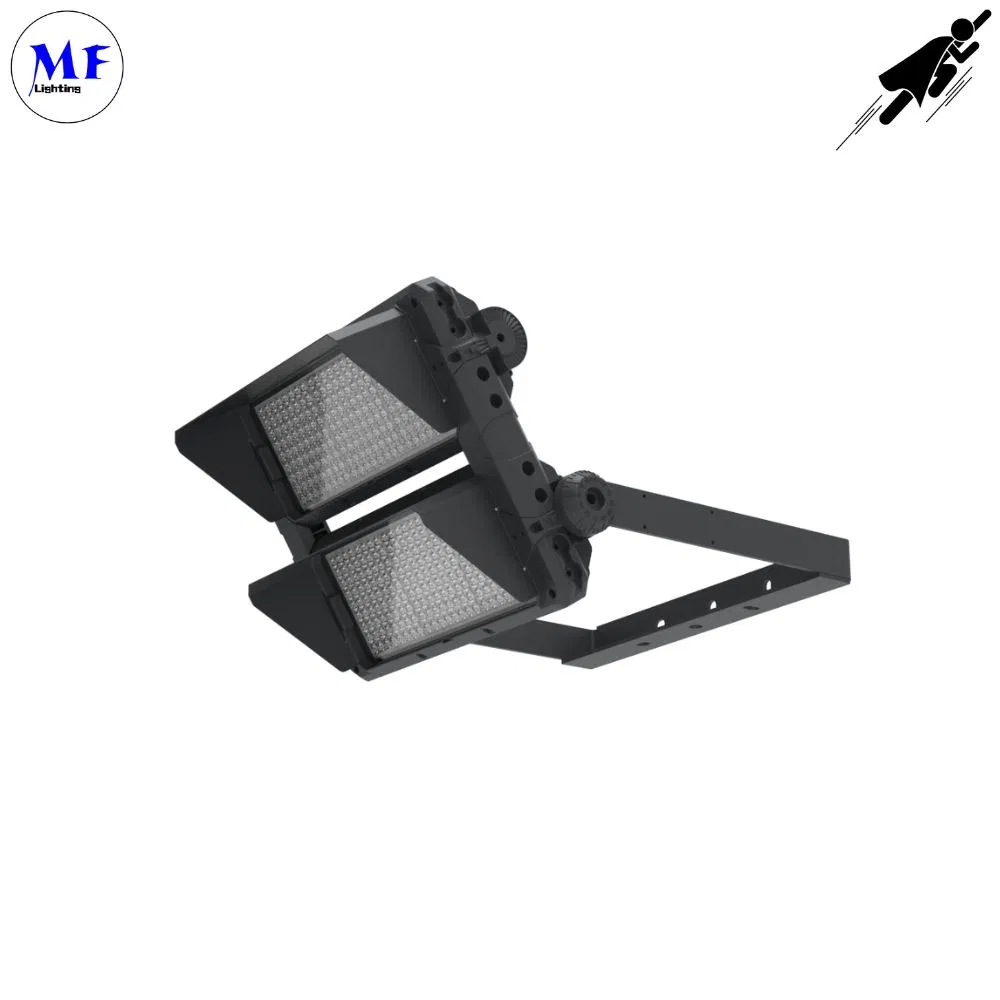

Modular 250W 360W 480W 720W 960W IP67 Waterproof Weatherproof Ik09 High Power Mast LED Flood Light for Billboard Port Harbor Marine Lighting Pathway Landscape
Product Description
📊 Basic Information
Model NO.
MF Superman2 High mast
Power
250W/360W/480W/720W/960W
IP Rating
IP67
IK Rate
IK09
Luminous Efficacy
≥135 Lm/W
Input Voltage
AC100-277V, 50-60Hz
LED Chips
Lu-Mileds / CREE
Life Span
>50,000hrs
Housing
Die-Casting Aluminum Alloy
Certification
CE, ETL, FCC, RoHS, SAA, Dlc/TUV/CB
💡 Product Highlights
Modular 250W-960W IP67 Waterproof High Power Mast LED Flood Light
- Modular Design: Independent power supply, easy to achieve power changes and rapid maintenance.
- ADC12 Die-casting Aluminum: Enhances performance against salt spray, gas corrosion, and UV light, extending lifespan.
- Professional Distribution: Optimized for high pole lighting with high uniformity and utilization rates.
- Scratch-free Adjustment: Patented angle adjustment design protecting paint surfaces and mounting brackets.
- External Floating Driver: Reinforced heat dissipation bracket forms a convection channel for the radiator.
📝 Technical Specifications
| Power | 240W | 360W | 480W | 720W | 960W |
|---|---|---|---|---|---|
| Luminous Flux (45°, 20°) | 32400±5% lm | 48600±5% lm | 64800±5% lm | 97200±5% lm | 129600±5% lm |
| LED Quantity | 216 pcs | 288 pcs | 432 pcs | 648 pcs | 864 pcs |
| Light Efficiency | ≥135 lm/W | ||||
| Color Temp (CCT) | 3000K / 4000K / 5700K (±300K) | ||||
| Beam Angle | 20/15/45/60/90/120/Asymmetric 105°/55° | ||||
| Lifespan | >100,000h | ||||
⚡ LED Parameters
| Brand | CREE | Lu-mileds |
|---|---|---|
| Chips Size | 3.5X3.5X2.0 mm | 3.0X3.0X0.52 mm |
| Beam Angle | 120° | 120° |
| Efficiency | 120-150lm | 120-150lm |

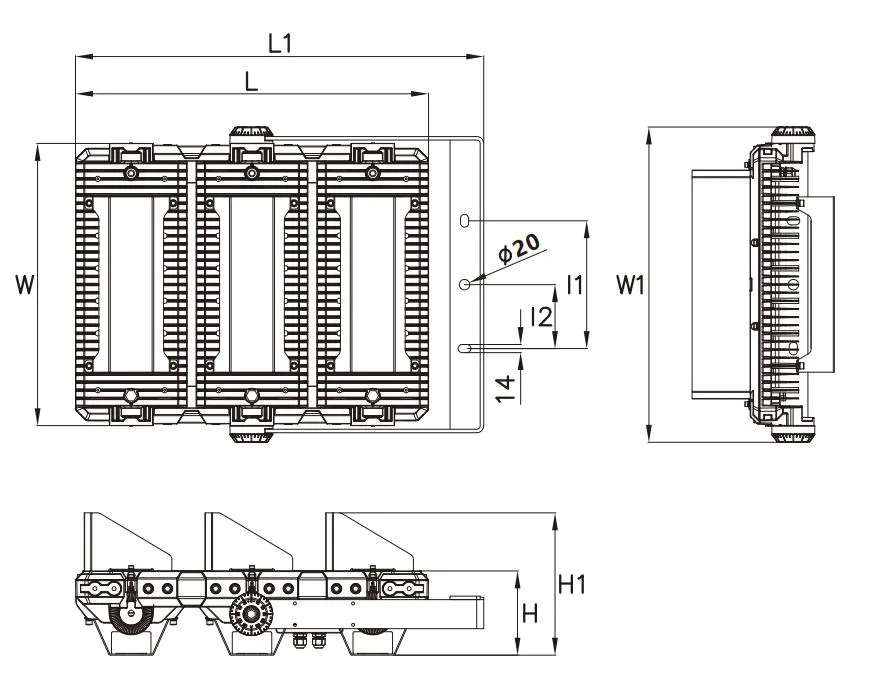

📏 Dimensions & Weight
| Power | 240W | 360W | 480W | 720W | 960W |
|---|---|---|---|---|---|
| Length (L1) | 331mm | 539mm | 539mm | 704mm | 912mm |
| Weight (G.W.) | 11kg | 19.5kg | 19.5kg | 29.5kg | 37.5kg |

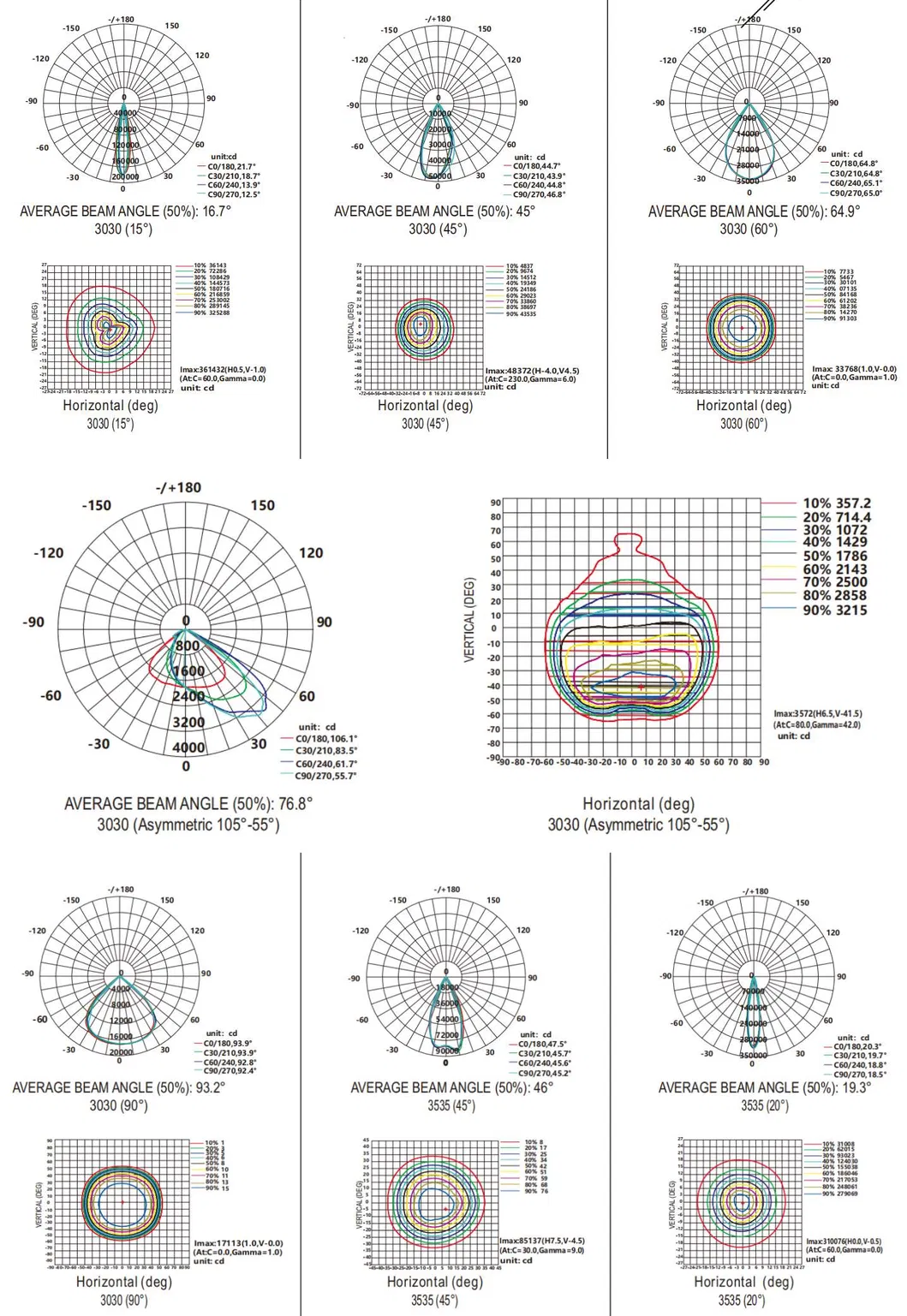

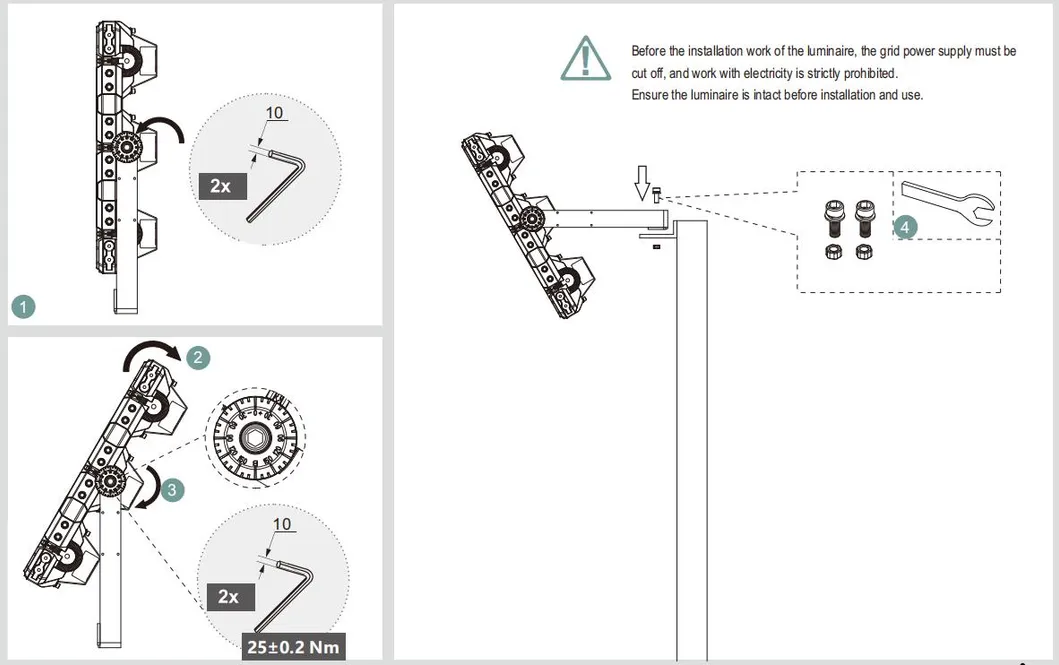

⚙️ Photometry & Installation

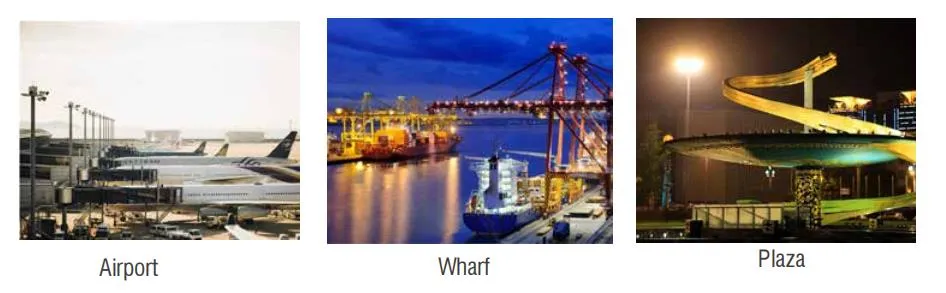

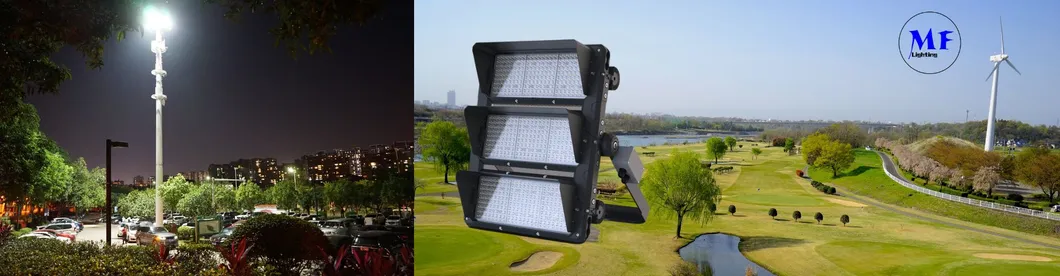

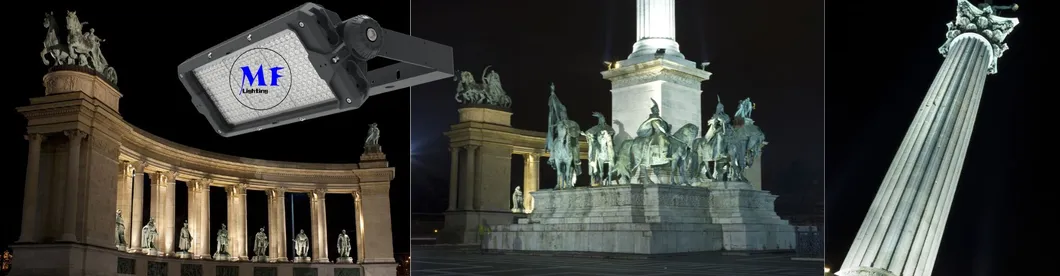

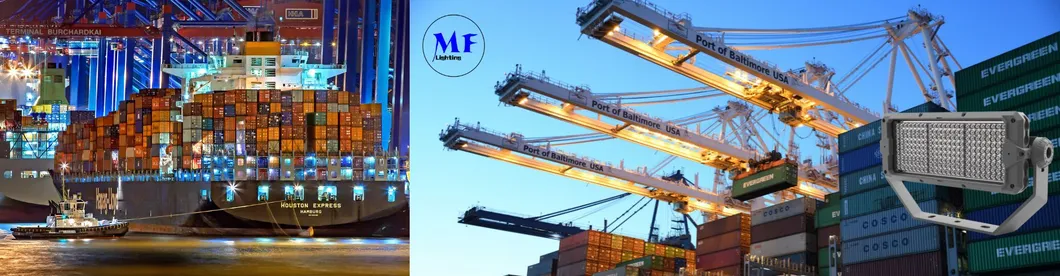

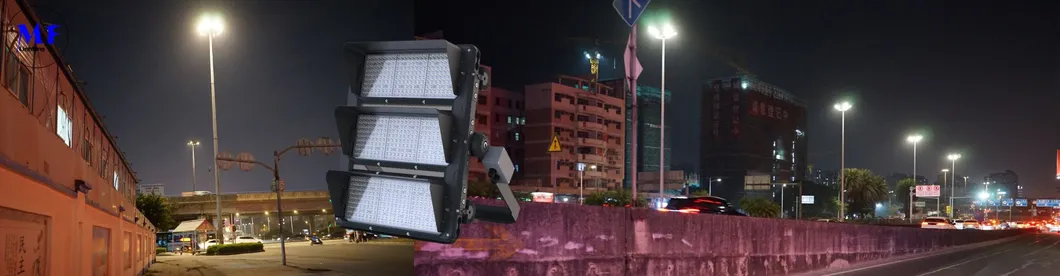

📍 Versatile Applications

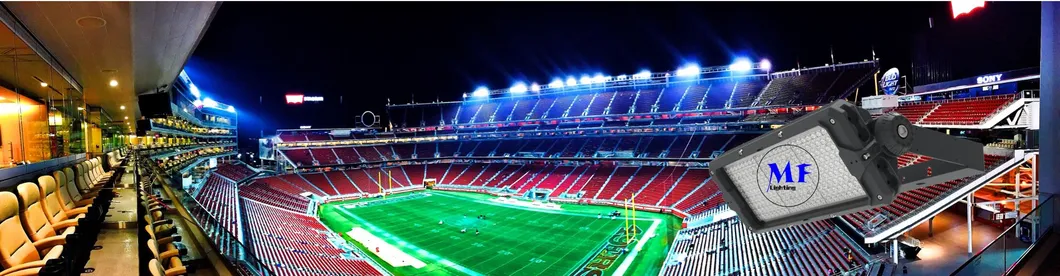

Stadium, Wharf, Airport, Dock, Tower Crane, Large Outdoor Parking Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.
LED High Mast Flood Lights provide bright and uniform illumination across large playing fields and spectator areas, ensuring optimal visibility for evening sports. They are also critical for airport runways, taxiways, and industrial ports where safety and 24/7 productivity are paramount.

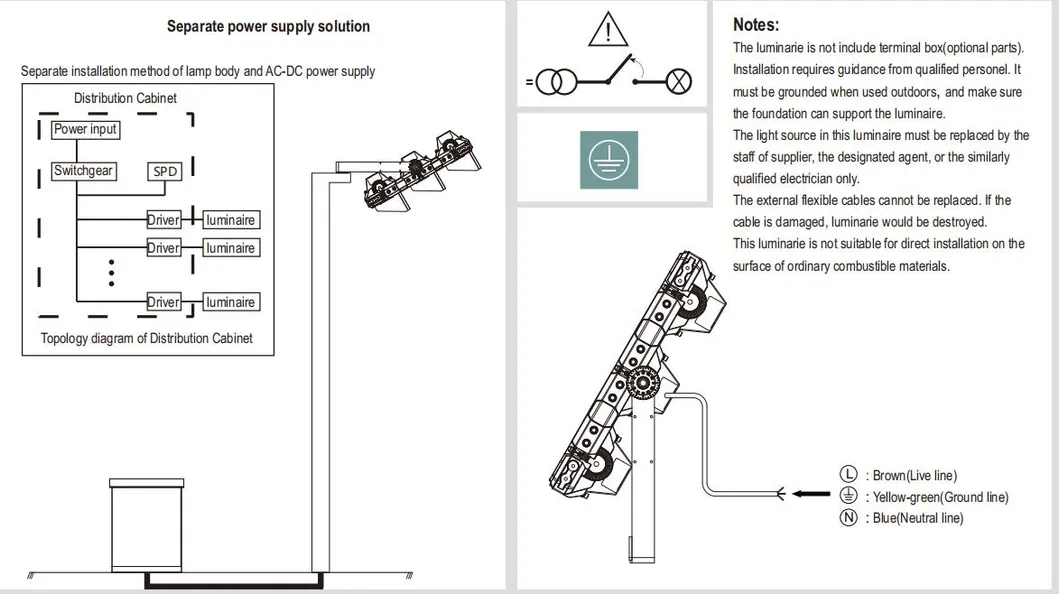

🔌 Wiring Information
CAUTION: Risk of electric shock

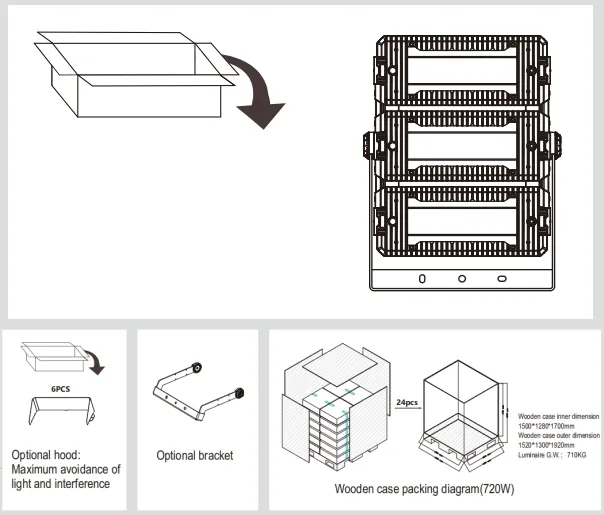

📦 Packaging & Shipping
❓ Frequently Asked Questions
Q1: What are the primary applications for these high mast LED lights?
A: They are ideal for large outdoor areas including sports stadiums, airports, shipping ports, industrial complexes, and large parking lots.
Q2: What is the waterproof and durability rating?
A: The lights are IP67 waterproof and weatherproof, with an IK09 impact resistance rating, making them suitable for harsh environments.
Q3: How does the modular design benefit the user?
A: The modular design allows for independent power supply management, making it easy to change power outputs or perform rapid maintenance without special accessories.
Q4: What are the available beam angle options?
A: We offer a wide range of beam angles: 20°, 15°, 45°, 60°, 90°, 120°, and Asymmetric 105°/55° to suit different lighting requirements.
Q5: What is the expected lifespan of the LED High Mast light?
A: The light is designed for longevity, with a life span exceeding 50,000 to 100,000 hours depending on operating conditions.
Q6: What materials are used for the housing?
A: The housing is constructed from ADC12 die-casting aluminum alloy, providing excellent heat dissipation and resistance to corrosion.
