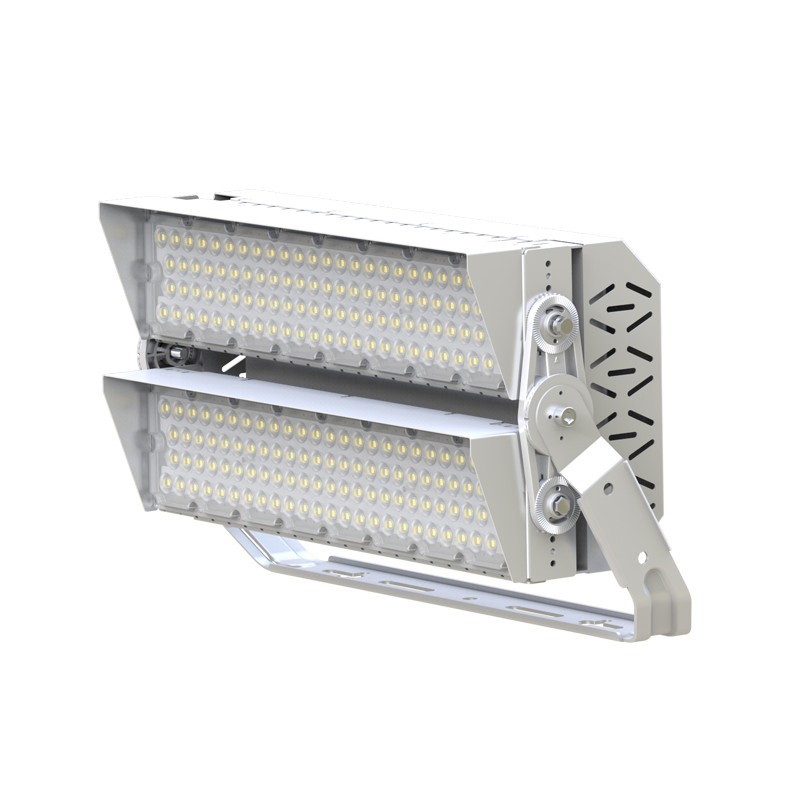

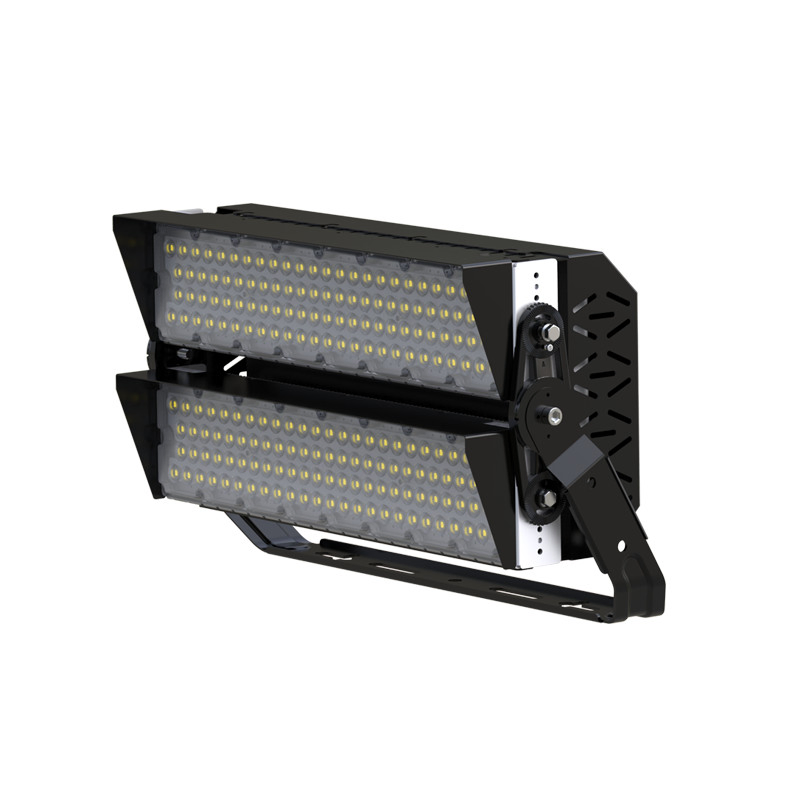

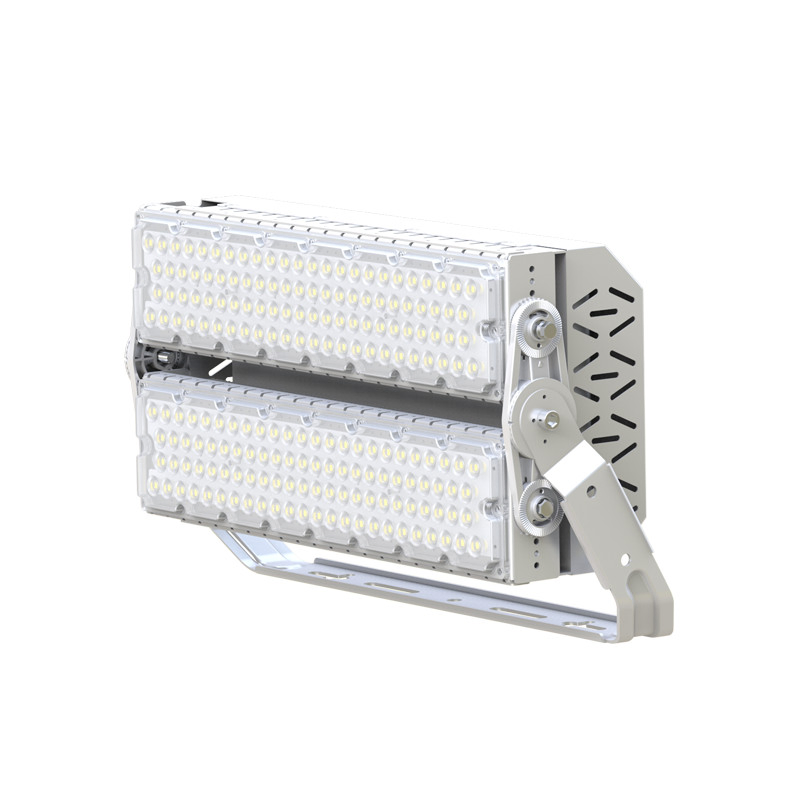

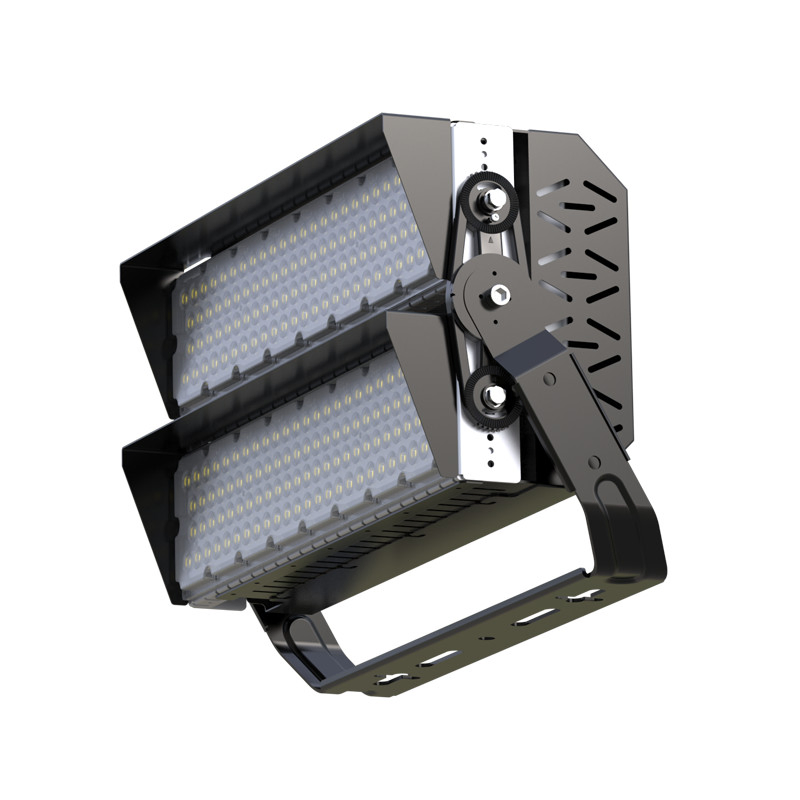

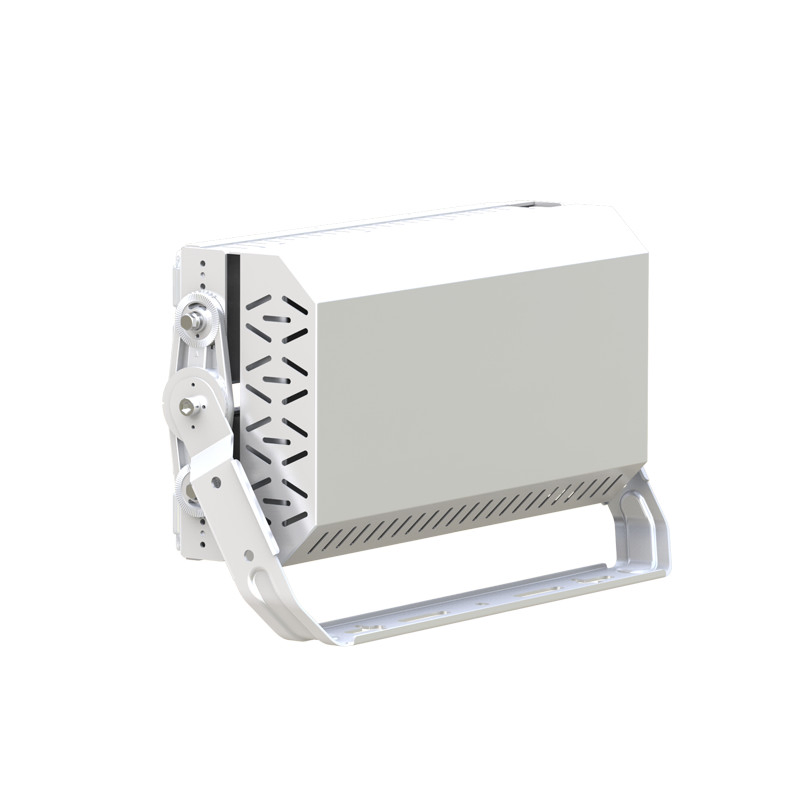

LED Flood Light 480W LED Stadium Light Spotlight Lamp 5000K Outdoor Lighting for Sports, Billboard, Garage, Garden
Product Description
Basic Specifications
Model NO.
PL-SD-039M-02-480W
Power
480W
Projection Distance
>35m
Application
Park, Square, Factory, Garden
IP Rating
IP67
Certification
CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE

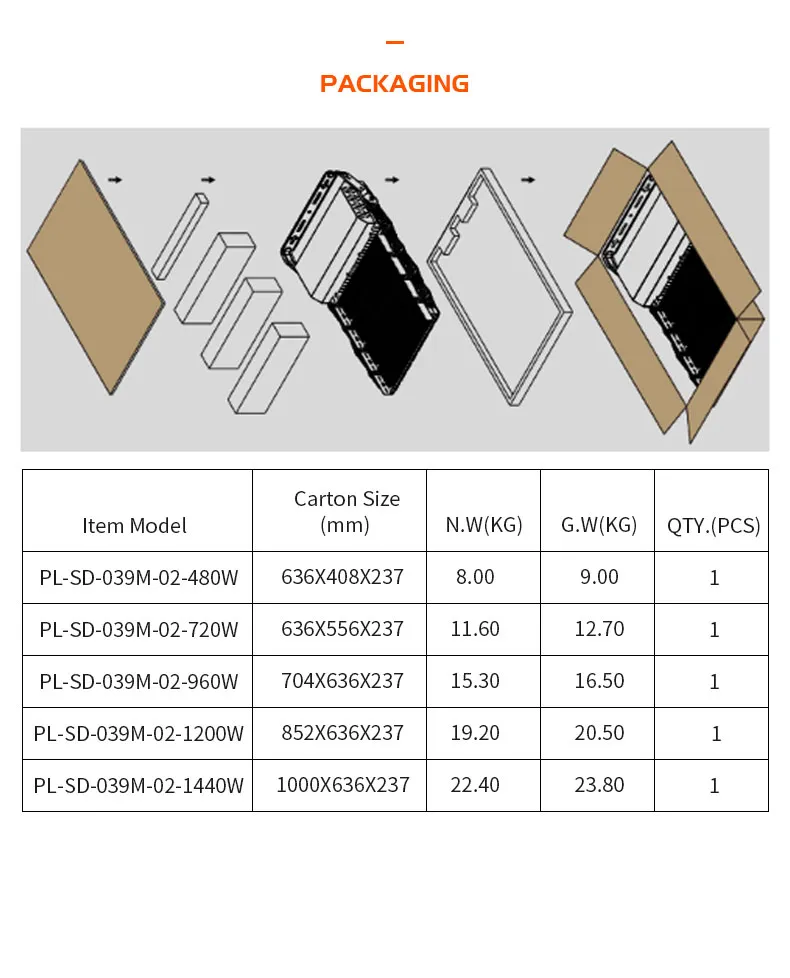

Transport Package
Cartons
Origin
China
HS Code
9405409000
Production Capacity
500,000 PCS/Year
Product Advantages

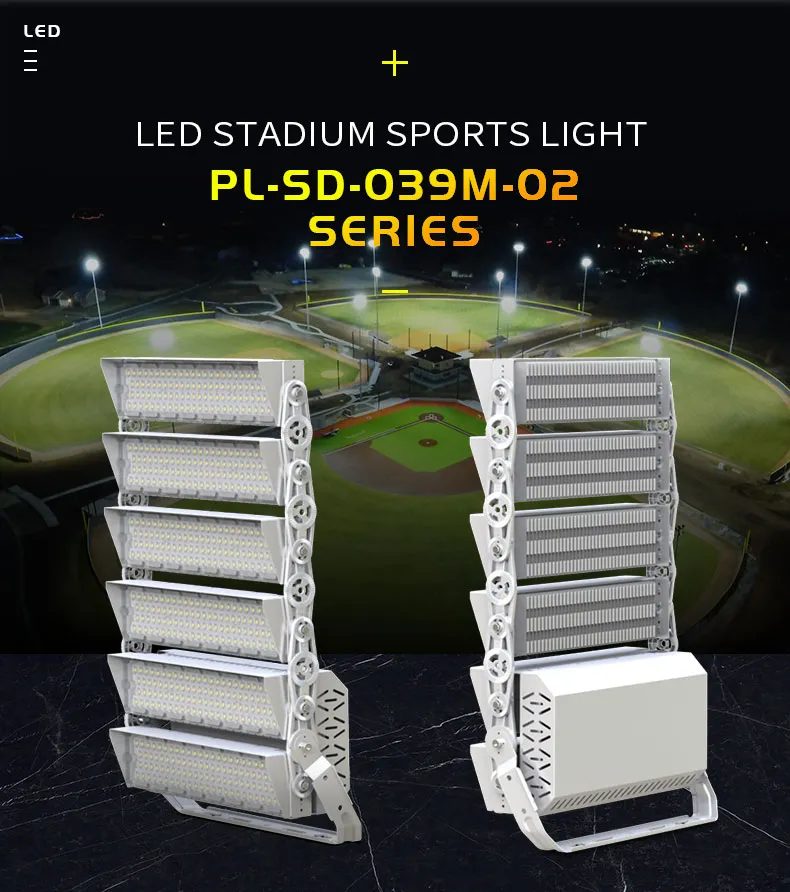

High Performance LED Stadium Sports Lighting Solutions

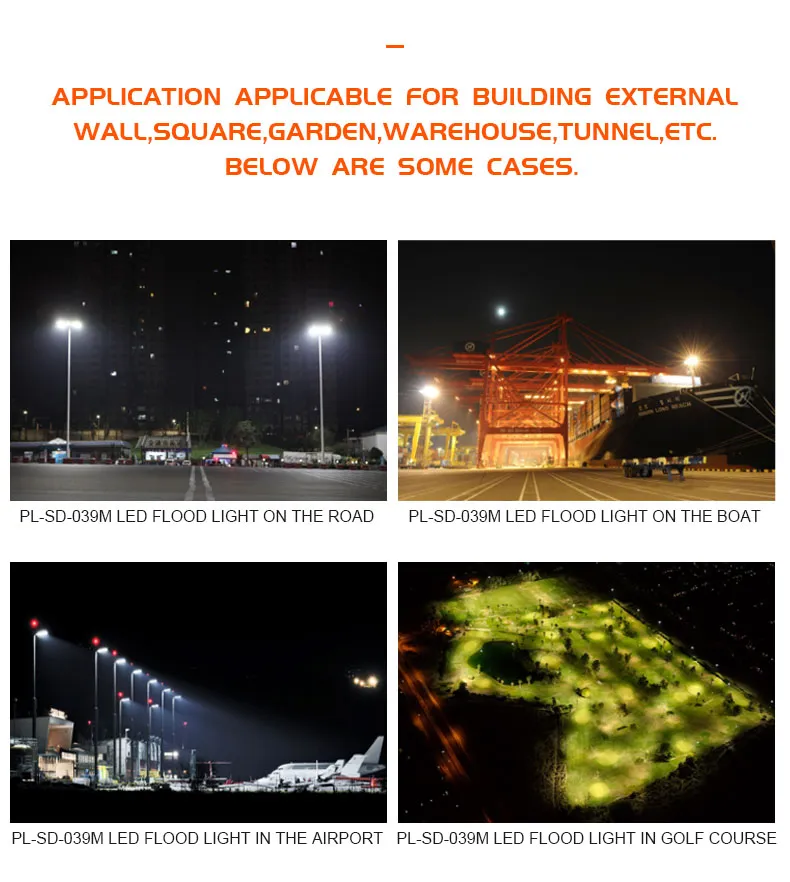

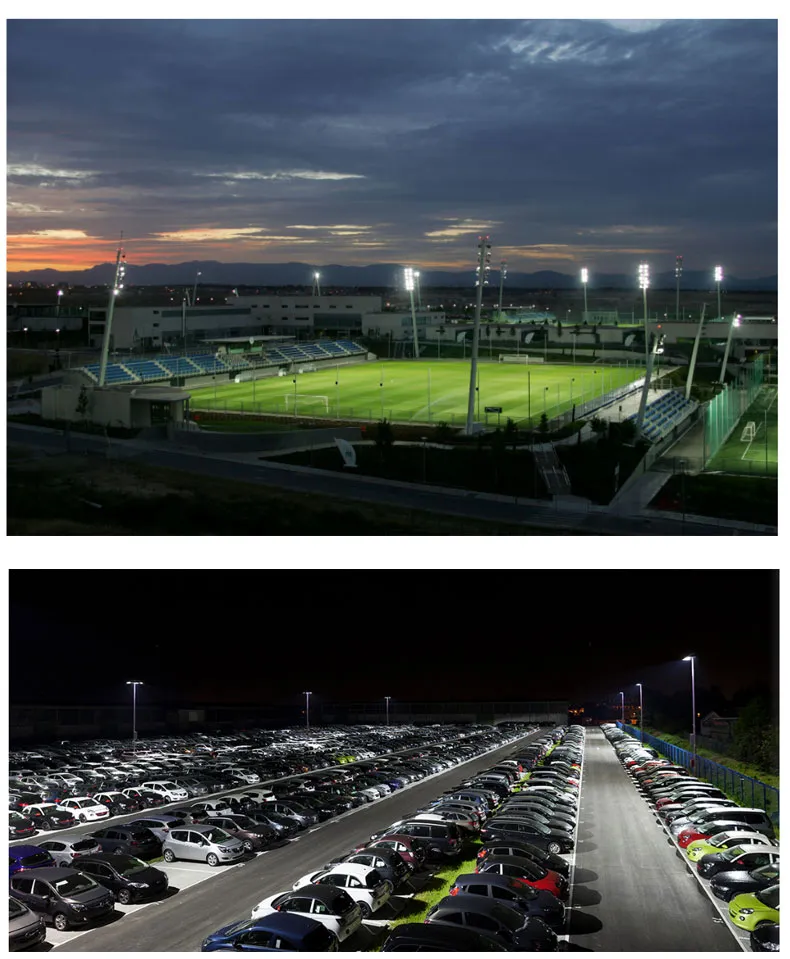

- Adjustable flood light ideal for project lighting, sports fields, high masts, warehouses, tunnels, and football fields.
- Equipped with Meanwell/Inventronics/G-power drives for superior anti-surge protection and stable performance.

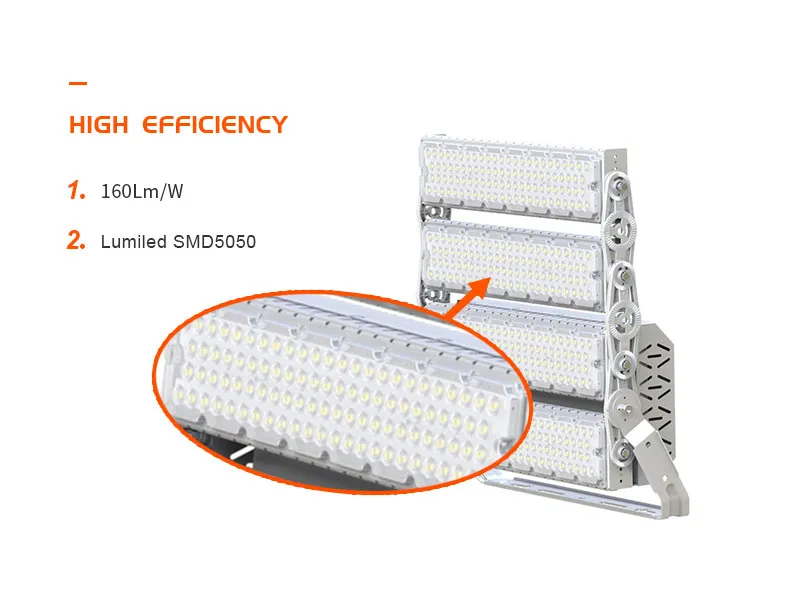

- Utilizes next-generation SMD Lumileds LED source for high brightness and long lifespan with low light decay.
- Multiple beam angle options available to suit diverse application scenarios.
- Full support for IES files and Dialux simulation programs.
- IP65 Waterproof rating, designed for rigorous outdoor environments.
- Certified by TUV-CE (EMC LVD ROHS), CB, and SAA.
Technical Datasheet

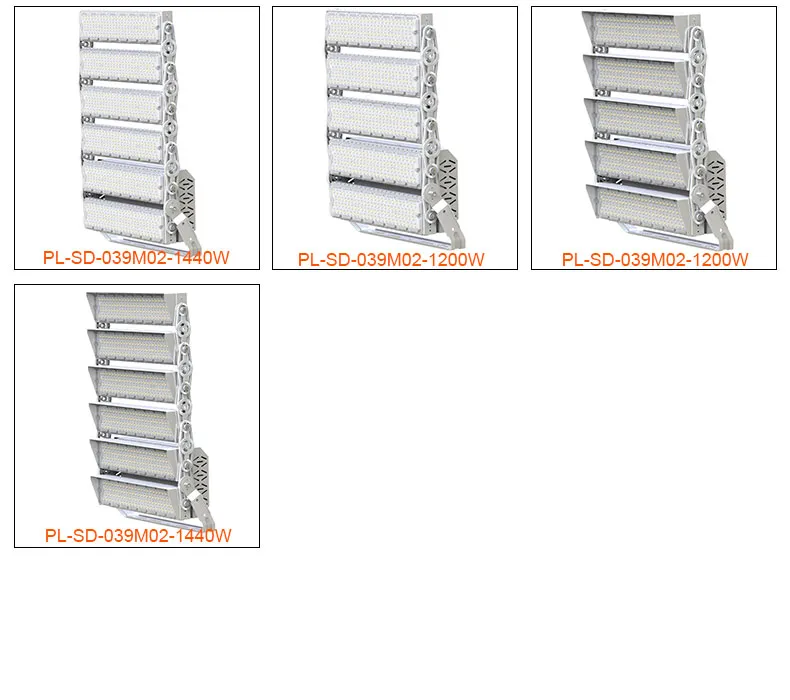

| Model Parameter | 480W | 720W | 960W | 1200W | 1440W |
|---|---|---|---|---|---|

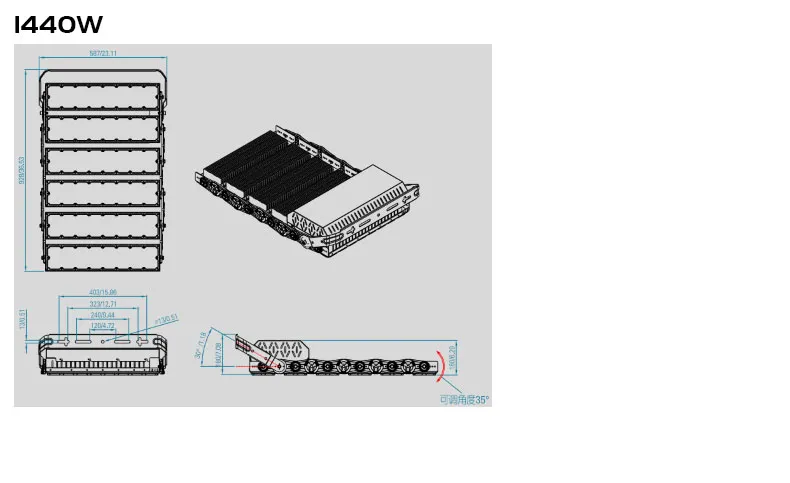

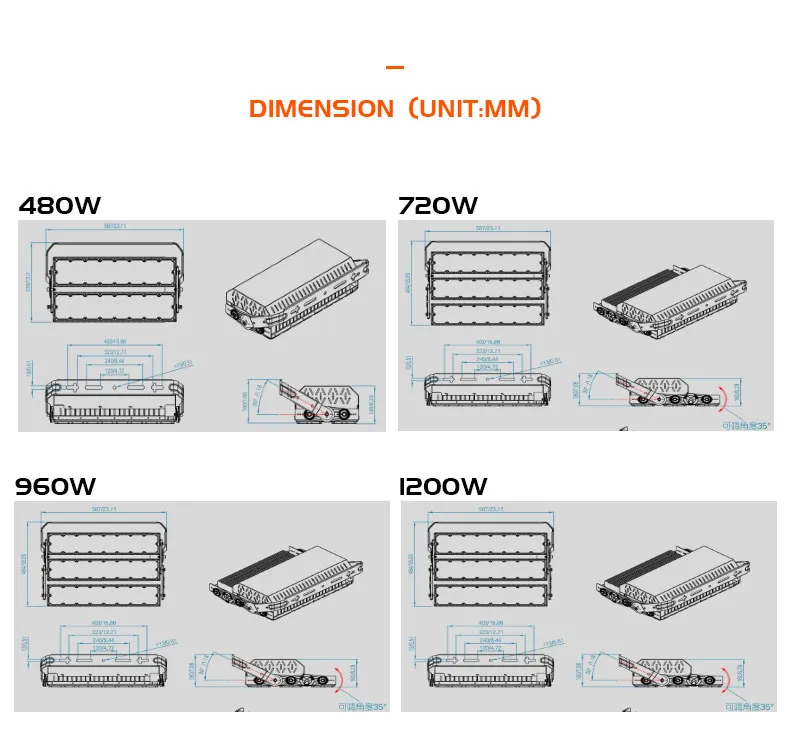

| Dimension | 587X338X180mm | 587X484X180mm | 632X587X180mm | 780X587X180mm | 928X587X180mm |
| Luminous Flux | 160lm/w±5% | ||||
| LED Source (Lumileds 5050) | 192 PCS | 276 PCS | 384 PCS | 480 PCS | 576 PCS |
| Input Voltage | AC100~277V (50~60Hz) | ||||
| Color Temp (CCT) | 2700-6500K | ||||
| CRI / IP Rating | CRI>70/80 | IP65 & IK08 | ||||

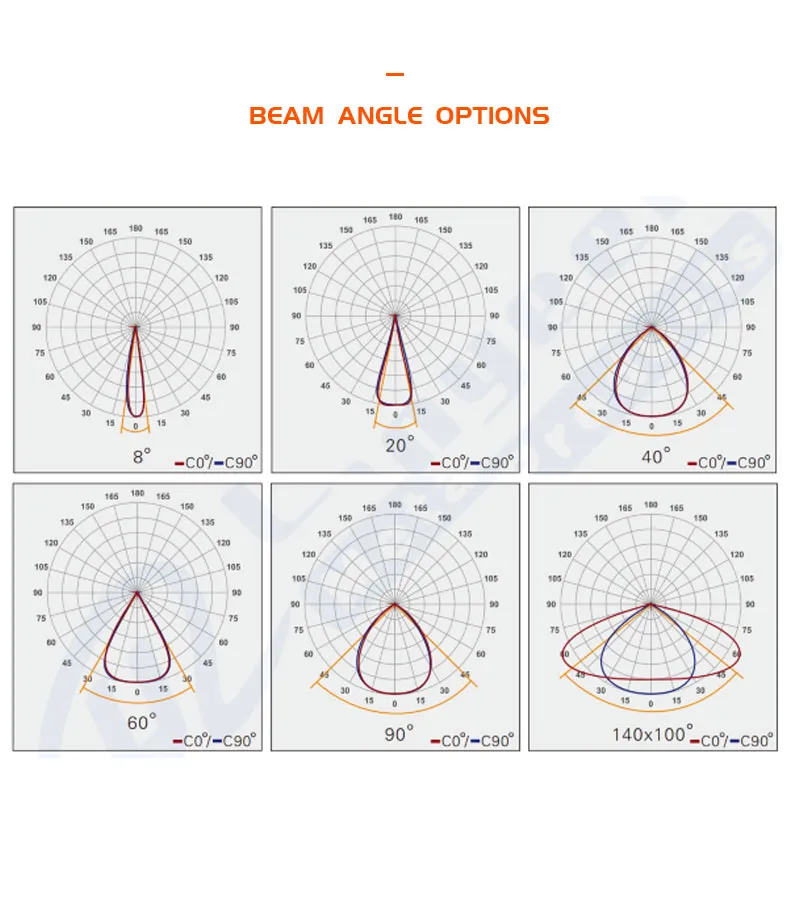

| Beam Angle | 20° / 40° / 60° / 90° / 100X140° | ||||
| Working Life | >50,000 hours | ||||

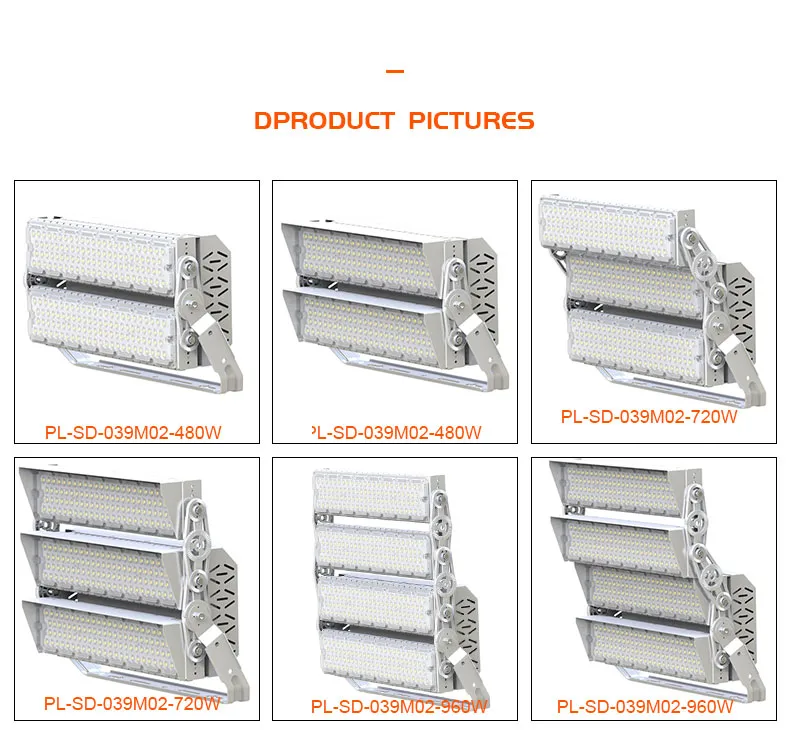

Product Gallery
Frequently Asked Questions
Do LED stadium lights really have a 50,000-hour lifespan?
A 50,000-hour lifespan is the theoretical result of laboratory testing. In actual working environments, lifespan typically averages around 30,000 hours, though it can reach full theoretical limits if high-quality materials and optimal conditions are maintained.
Why do different suppliers offer different brightness for the same power?
Brightness varies based on the LED chips used or different brightness versions of the same chip. Performance is also determined by the difference between individual LEDs and the final lamp fixture efficiency.
What is Color Temperature (CCT)?
Color temperature is measured in Kelvin (K). Lower color temperatures (warmer light) are often used for relaxation in public areas, while higher color temperatures (cooler light) enhance concentration in offices or sports venues.
What is the significance of CRI?
The Color Rendering Index (CRI) represents how accurately a light source reveals the true colors of objects. A higher CRI provides more vivid and natural color representation.
What are Power Factor (PF) and efficiency?
PF and efficiency indicate the electrical performance of the LED driver. Higher PF and efficiency ratings result in better energy savings and overall product quality.

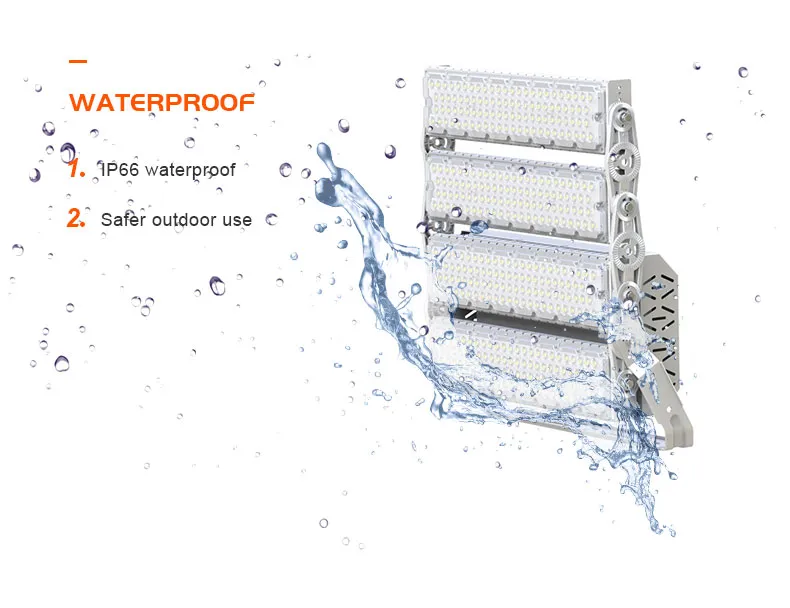

Can these lights be used in heavy rain?
Yes, with an IP65/IP67 rating and specialized waterproof housing, these lights are designed to function reliably in outdoor environments and wet weather conditions.
